Price : $800-1500
Payment Terms : T/T,L/C
Place of Origin : China
Voltage : 220V
Brand Name : Sikerui
Packaging Details : Wooden Box
Supply Ability : 5000 Units Per Month
MOQ : 1PCS
Power : 40W
Delivery Time : 5-7days
Thickness : 1.0mm
Certification : CE / RoHS / FCC
Channel width : 600-900mm
Dimension : 1400 * 120 * 980mm
Material : 304 stainless steel
Model Number : SSTBZ-04

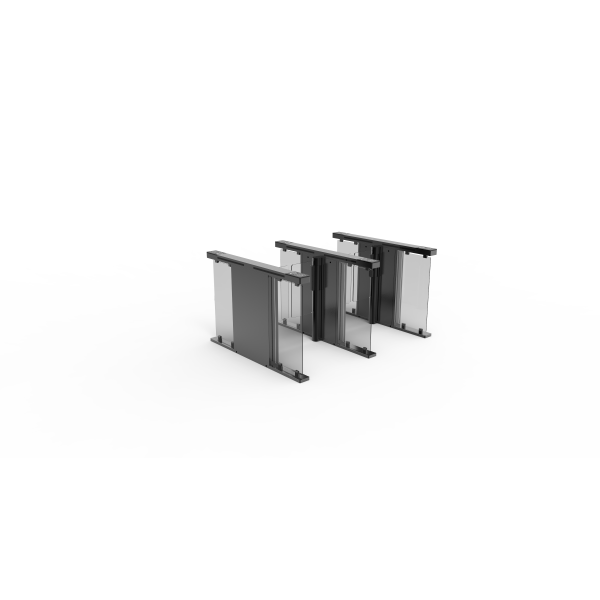

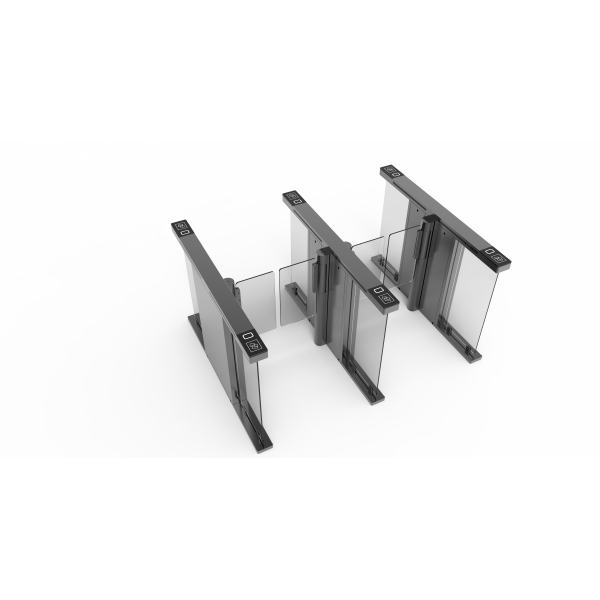

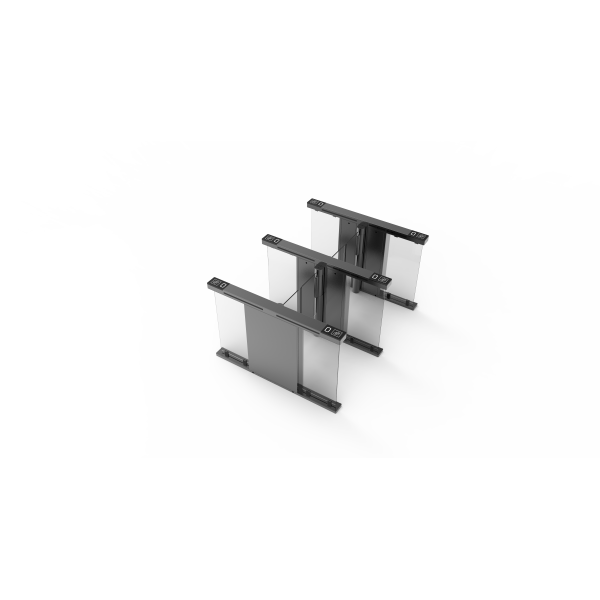

This intelligent swing barrier, model SSTBZ-04, is designed for efficient and secure access control in various environments. Constructed from robust 2.0mm thick steel plate with paint, it ensures durability and long-lasting performance. Its versatile traffic mode settings and electromechanical anti-collision protection make it a reliable solution for managing pedestrian flow.
Ideal for indoor and outdoor use (with canopy), this swing barrier can withstand a wide range of environmental conditions, from -20°C to +60°C. With a service life of over 5 million continuous opening and closing cycles, it offers exceptional value and reliability.
Suitable for use in office buildings, factories, transportation hubs, and other locations requiring controlled pedestrian access.
| Parameter | Value |
|---|---|
| Model Number | SSTBZ-04 |
| Dimension | 1400 * 120 * 980mm |
| Thickness | 1.0mm |
| Channel Width | 600-900mm |
| Voltage | 220V |
| Power | 40W |
| Material | 304 stainless steel |
| Steel Plate Thickness | 2.0mm |
| Cylinder Diameter | 168mm |
| Height | 1050mm |
| Traffic Speed | ≤30 people/minute |
| Driving Motor Voltage | DC 24V brushless motor |
| Working Environment Temperature | -20℃ ~+60℃ |
| Relative Humidity | ≤95%, no condensation |
| Communication Interface | RS485 electrical standard |
| Communication Distance | ≤ 1200m |
| Opening Time | 0.8S |
| Service Life | continuous opening and closing for more than 5 million times |
| Working Environment | indoor and outdoor (with canopy) |
| Noise during device operation | ≤60 dB |





|
|
